Implementing Jaeger Tracing

0. Adding Service Name

1
service_name = "ShortlistCadidatesForJobAPI"
Files to exclude Api.py, jaegerTracing.py, registrator.py

1. Importing Libraries

1.0 Flask API Tracing

1.0.0 Automated Traces All Routes

1
2
3
4
5
# Distributed Tracing
import jaegerTracing
tracer = jaegerTracing.getTracerInstance()
from flask_opentracing import FlaskTracing
tracing = FlaskTracing(tracer, True, app)

1.0.1 Import Libraries via Regrx

Regex Pattern

1
cors = CORS\(app, resources=\{r"/\*": \{"origins": "\*"\}\}\)
Regex Pattern
1
2
3
4
5
6
7
cors = CORS(app, resources={r"/*": {"origins": "*"}})

# Distributed Tracing
import jaegerTracing
tracer = jaegerTracing.getTracerInstance()
from flask_opentracing import FlaskTracing
tracing = FlaskTracing(tracer, True, app)

1.1 Batch Editing in Client files

1.1.0 Import Libraries without Regex

1
2
3
4
5
# Distributed Tracing
from opentracing_instrumentation.request_context import get_current_span, span_in_context
import jaegerTracing
tracer = jaegerTracing.getTracerInstance()
from opentracing.propagation import Format

1.1.1 Import Libraries via Regrx

Regex Pattern

1
class\s\w*\(\):
Regex Pattern
1
2
3
4
5
6
7
# Distributed Tracing
from opentracing_instrumentation.request_context import get_current_span, span_in_context
import jaegerTracing
tracer = jaegerTracing.getTracerInstance()
from opentracing.propagation import Format

$0

2. Injecting Spans

2.0 Methods with try-except (Without Class)

Caution

When you put the following opentracing implementaion the code mush below should reindent towards right by 4 space (1 Tab).

Hint

Add jaeger imports -- to the files with no class

Regex Pattern

1
2
\n(def\s([\w]+)\s?\(self,*\s*([\w,\s=']*)\)\s*:)\s*
    (try:)
Regex Pattern
1
2
3
4
5
$1
    $4
        span_ctx = tracer.extract(format=Format.TEXT_MAP, carrier={})
        with tracer.start_active_span('$2', child_of=span_ctx) as scope:
            scope.span.set_tag('args', [$3])

2.1 Methods without try-except

Regex Pattern

1
\n(def\s([\w]+)\s?\(self,*\s*([\w,\s=']*)\)\s*:)
Regex Pattern
1
2
3
4
$1
    span_ctx = tracer.extract(format=Format.TEXT_MAP, carrier={})
    with tracer.start_active_span('$2', child_of=span_ctx) as scope:
        scope.span.set_tag('args', [$3])

2.2 Methods with try-except

Regex Pattern

1
2
(    )(def\s([\w]+)\s?\(self,*\s*([\w,\s=']*)\)\s*:)\s*
        (try:)
Regex Pattern
1
2
3
4
5
$2
    $5
        span_ctx = tracer.extract(format=Format.TEXT_MAP, carrier={})
        with tracer.start_active_span('$3', child_of=span_ctx) as scope:
            scope.span.set_tag('args', [$4])

2.3 Methods without try-except

Regex Pattern

1
(    )(def\s([\w]+)\s?\(self,*\s*([\w,\s=']*)\)\s*:)
Regex Pattern
1
2
3
4
$2
    span_ctx = tracer.extract(format=Format.TEXT_MAP, carrier={})
    with tracer.start_active_span('$3', child_of=span_ctx) as scope:
        scope.span.set_tag('args', [$4])

Caution

Indentation of the file reduces the starting spaces upto 4 spaces with cause except to deviate from consective try. You should have to replace the spaces accouding to the starting try block.

2.4 Handling Exception

Regex Pattern

1
(\s*)except Exception as ex:
Regex Pattern
1
2
$0
    $1scope.span.set_tag('Exception', ex)

2.5 Handling Return Statuses

Tip

Make sure regex button is pressed in vscode search field.

01 - Return Variable Names

Regex Pattern

1
(\s*)return jsonify\(([\w]*)\)

Regex Pattern

1
$1scope.span.set_tag('response', $2)$0

02 - Return Strings

JSON String

Regex Pattern

1
(\s*)return jsonify\("([\w\s]*)"\)
Regex Pattern
1
$1scope.span.set_tag('response', '$2')$0

Simple String

Regex Pattern

1
(\s*)return\s*["']([\w\s]*)['"]
Regex Pattern
1
$1scope.span.set_tag('response', "$2")$0

03 - Return Json Data

Regex Pattern

1
(\s*)return jsonify\(\{(['\w:,\s\[\].+"\(\)]*)\}\)
Regex Pattern
1
$1scope.span.set_tag('response', dict({$2}))$0

04 - Return Graph Database Collections Query

Regex Pattern

1
(\s*)return list\(self\.Collection\.find\((\w*)
Regex Pattern
1
$1scope.span.set_tag('response', $2)$0

Hint

add the following snippet

1
self.graph.run

05 - Return response.json()

Regex Pattern

1
(\s*)return response\.json\(\)
Regex Pattern
1
2
$1scope.span.set_tag('response', response.json())
$0

06 - Return True/False

Regex Pattern

1
(\s*)return True

1
2
$1scope.span.set_tag('response',  'True')
$0

Regex Pattern

1
(\s*)return False

1
2
$1scope.span.set_tag('response',  'False')
$0

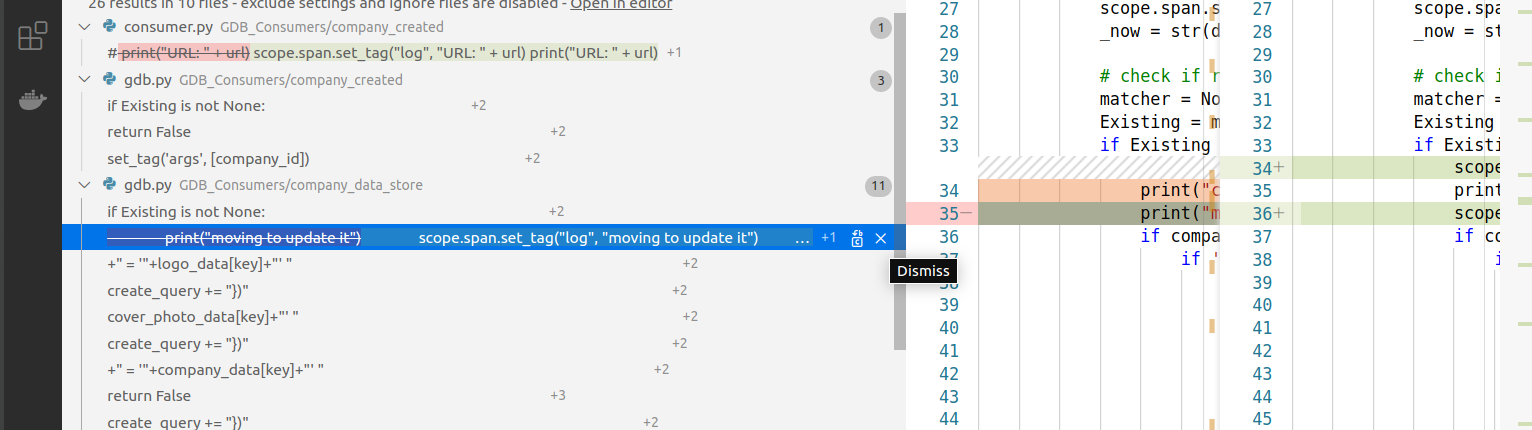

07 - Adding Print logging to jaeger

Regex Pattern

1
([\s]*)print\((["'][\w\s:."]*[+\sstr\(\w\)]*)\)\n

1
$1scope.span.set_tag("log", $2)$0
alt text

3. Keywords Used in All APIS

args response query log

4. RPC Inject/Extract Calls Regex

4.0 Injecting Spans Replacement

Hint

Do not include url with KONG calling

Regex Pattern

1
([\s]*)response\s*=\s*requests.
Regex Pattern
1
2
3
4
5
6
7
$1#Distributed Tracing
$1carrier = {"Content-Type": "application/json"}
$1tracer.inject(
$1    span_context=scope.span.context,
$1    format=Format.TEXT_MAP,
$1    carrier=carrier)
$0

Regex Pattern

1
headers\s*=\s*\{([\w\s" '-:]*)\}
Regex Pattern
1
headers= carrier

4.1 Extracting Spans Replacement

Hint

This portion is already implemented while injecting spans

Regex Pattern

1
([\s]*)with tracer.start_active_span
Regex Pattern
1
2
$1span_ctx = tracer.extract(format=Format.TEXT_MAP, carrier={})
$0

Regex Pattern

1
) as scope:
Regex Pattern
1
, child_of=span_ctx) as scope:

Hint

Please reindent all the files where you have done changes -- feel free to use the following snippet to searching out the files will require reindentation.

Tip

After applying regex, methods were reindented from their actual location, you have to manually indent the methods. Ctrl+]

Regex Pattern

1
class\s\w*\(\):

5. Branches Created for Tracing

5.1 Names of Branches

1
git branch

  • ✔Tracing--RemaingAPIs-4✔

    • Organizational Data (revamp)

  • ✔Tracing--RemaingAPIs-3✔

    • Publisher_Bridge
    • Schedular
    • system_configuration_api
    • system_configuration_set_jobpost_to_expire_routine
    • top_data_api
    • URL_meta_data_api

  • ✔Tracing--RemaingAPIs-2✔

    • Social
      • company_activity_api
      • company_activity_apis
      • connection
      • follow_company
      • follow_user
      • job_post
      • news_feed
      • suggested_friends
      • url_post
      • user_comment_on_post_web_notifications
      • user_like_post_web_notifications
      • user_notifications
      • user_share_post_web_notifications

  • ✔Tracing--RemaingAPIs-1✔

    • profile_and_job_post_comparison_ratio_api
    • post_seen_api
    • Jobs_RelatedTo_Skills_Experience
    • profile_seen_api

  • ✔Tracing-GDB_APIs✔

    • GDB_APIs
      • Activity
      • EmailLogs
      • NewsFeed

  • ✔tracing_chat_api,-default-hiring--timeslot,-emailapi✔

    • ChatAPI
    • default_hiring_procedure_for_company
    • default_time_slot_for_company
    • email_api

  • ✔Tracing-GDB_Consumers✔

    • company_bookmarks_candidate
    • company_created
    • company_created_job_post
    • company_created_url_post
    • company_data_stor
    • company_seen_user_profile
    • company_shared_url
    • employee_associated_with_company
    • GDB_Newsfeed
    • job_application_state_chagne_notice
    • job_application_state_email_store_to_gdb
    • social_connect_users
    • social_disconnect_users
    • user_bookmarks_job_post
    • user_created
    • user_created_url_post
    • user_follow_company
    • user_job_post_like
    • user_job_post_unlike
    • user_seen_job_post
    • user_seen_user_profile
    • user_shared_job_post
    • user_shared_url_post
    • user_url_post_like
    • user_url_post_unlike

  • ✔Tracing_skill_social✔

    • Skill_Social/endorse_skill_api
    • Skill_Social/rate_skill_api
    • Skill_Social/skill_comment_api

  • Tracing_jobAPIs(all)

    • ✔ job_application_state_change_notice ✔
    • ✔ job_application_state_change_save ✔
    • ✔ job_application_state_change_web_notification ✔
    • ✔ job_application_state_email_log_to_mdb ✔
    • ✔ job_application_state_management_api ✔
    • ✔ job_comments_api ✔
  • Tracing-bkmrk-candid,-candid-job-app-mgmt-api,-bkmrk-job-api
    • ✔bookmark_candidates_api✔
    • ✔candidate_job_application_management_api✔
    • ✔bookmark_job_api✔
  • Tracing-JobPost-API
    • revamp_laravel_to_python_apis
      • ✔jobpost_python_apisjobpost_python_apis✔
  • shortlistedCandidate_tracing_with_Jaeger
    • ✔scheduler_api✔
    • ✔ shortlist_candidates_api ✔
    • revamp_laravel_to_python_apis
      • ✔ admin_operation_python_apis ✔
      • ✔ Consumer_UserName_Image_Storage ✔
      • ✔ profile_python_apis ✔
      • ✔ registeration_python_service_apis
  • jeager_implementation_organizationalDataAPI (obsolete)
    • organizational_data (deprecated)
